Brochure
MAINLY USED IN
-
OPERATING WEIGHT
22,200 kg
-
BUCKET CAPACITY (SAE HEAPED)
0.92 ~ 0.95 m³
-
ENGINE POWER (SAE J1349, NET)
108 kW (145 HP) @ 2,000 rpm
Specifications

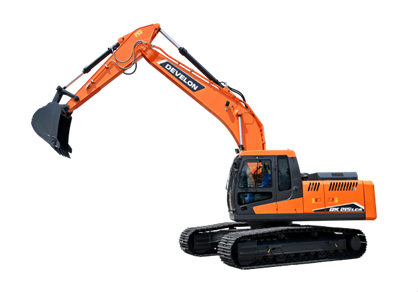

| Classification | DX215LCA-2H |
|---|---|
| Operating Weight | 22,200 kg |
| Bucket Capacity (SAE HEAPED) | 0.92 ~ 0.95 m³ |
| Engine Power (SAE j1349, net) | 108 kW (145 HP) @ 2,000 rpm |
| Engine Model | Cummins 6BTAA-5.9C |
| Travel Speed | 3.4 ~ 5.3 km/h |
| Max. Digging Reach | 9,480 ~ 9,950 mm |
| Max. Digging Depth | 6,050 ~ 6,570 mm |
| Max. Digging Height | 9,470 ~ 9,720 mm |
| Overall Length | 9,570 mm |
| Overall Width | 2,990 mm |
| Overall Height | 2,920 ~ 3,110 mm |
Compare
Products
Products
| Classification |
|---|
| Operating Weight |
| Bucket Capacity (SAE HEAPED) |
| Engine Power (SAE j1349, net) |
| Engine Model |
| Travel Speed |
| Max. Digging Reach |
| Max. Digging Depth |
| Max. Digging Height |
| Overall Length |
| Overall Width |
| Overall Height |
| DX215LCA-2H |
|---|
| 22,200 kg |
| 0.92 ~ 0.95 m³ |
| 108 kW (145 HP) @ 2,000 rpm |
| Cummins 6BTAA-5.9C |
| 3.4 ~ 5.3 km/h |
| 9,480 ~ 9,950 mm |
| 6,050 ~ 6,570 mm |
| 9,470 ~ 9,720 mm |
| 9,570 mm |
| 2,990 mm |
| 2,920 ~ 3,110 mm |
